SR3MO, SR3MI, SR3MR
SR3-DECO.RT.DWNG.pngSR3MO, SR3MI, SR3MR
3" Xt Round Decorative - 3000Lm

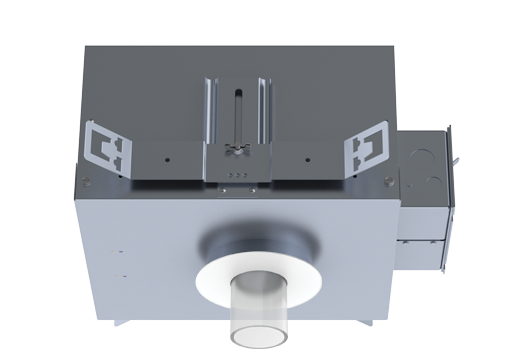

Precision Die-formed 20 gauge galvanized steel housing and integral junction box with (3) 5/8", (3) 7/8" and (2) 1 1/8" knockouts. Junction box capacity: 8 12AWG rated for 90 °C. Tool-less driver and junction box access for ease of maintenance. Posi-loc trim rentention springs for 5/8"-1" ceiling thickness. Use PR2 for up to 2" thick ceiling. For thicker ceilings consult factory
Resources
SR3MO, SR3MI, SR3MR
Families
- A Spec
Trim Type
- Decorative Elements
- Flange
Lumens
- 1000 Lm
- 1300 Lm
- 2000 Lm
- 3000 Lm
Distribution
- Medium
Shape
- Round
Aperture
- 3 In.
Installation Type
- New Construction
- Retrofit & Remodel
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- MLV
Ratings & Compliance
- Buy American Act (BAA)
- IC
- Made in America
- Non-IC
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 83 CRI
- 98 CRI
Watts
- 11.1 w
- 15.0 w
- 23.7 w
- 34.6 w
Efficacy
- 18 lm/w
Listings
- ETL
- UL
Materials
- Aluminum
- Steel
Trim Finish
- Black
- Matte White
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 10%
- Non-Dimmable
