RDFI4XT FACY
RDFI4XT FACY- IC.png
RDFI4XT FACY.DWNG.pngRDFI4XT FACY

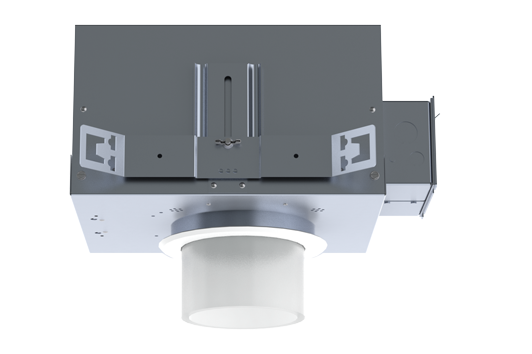

4" Round Downlight 2000 Lm - Ic Rated
Illumitech decorative recessed series offer two lengths of decorative acrylic cylinder (FACY). Cylinder glows softly to create ambiance. Two-stage optical system with regressed Solite lens for smooth light distribution. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs.
Resources
RDFI4XT FACY
Families
- Illumitech
Trim Type
- Decorative Elements
- Flange
Lumens
- 1000 Lm
- 1300 Lm
- 2000 Lm
Distribution
- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide
Shape
- Round
Aperture
- 4 In.
Installation Type
- New Construction
Dimming Protocol
- 0-10 V
- ELV
- Forward Phase
- MLV
Ratings & Compliance
- Buy American Act (BAA)
- IC
- Made in America
- Wet
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 83 CRI
- 98 CRI
Watts
- 11.1 w
- 15.0 w
- 23.7 w
Efficacy
- 48.4 lm/w
- 49.7 lm/w
- 49.9 lm/w
Listings
- ETL
- UL
Materials
- Aluminum
- Steel
Trim Finish
- Black
- Bronze
- Matte White
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 1%
- 10%
- < 1%
- Non-Dimmable
