SGE5LEDFX, SGW5LEDFX
SGE5LEDOS.DWNG.pngSGE5LEDFX, SGW5LEDFX
SGE5LEDFX, SGW5LEDFX

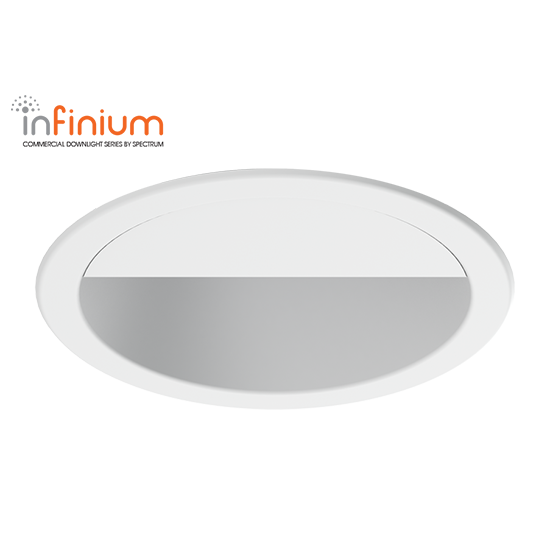

FX series 5" diameter downlights, designed for general downlighting with smooth light distribution. Shallow plenum construction. Wide range of apertures. Companion retrofit and remodel fixtures available. Auto dim thermal protector for long term reliability. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Posi-lock trim retention torsion springs. Integral 5/8" (.625) collar, works in ceiling up to 1" Deep. BH27 Standard mounting bars included. Intended for Non-IC new construction.
Resources
 SGE5LEDFX, SGW5LEDFX, SGE5, SGW5, SGE, SGW, SG5
Families
- Infinium
Trim Type
- Downlight
- Flange
- Lensed
- Wall Wash
Lumens
- 742 Lm
- 1195 Lm
- 1608 Lm
- 2391 Lm
- 3215 Lm
- 4122 Lm
Shape
- Round
Aperture
- 5 In.
Installation Type
- New Construction
Emergency Options
- Integral EM Battery
- Remote EM Battery
Dimming Protocol
- 0-10 V
- ELV
- Triac
Ratings & Compliance
- Buy American Act (BAA)
- LM79
- LM80
- Made in America
- Non-IC
- Wet
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
- 90 CRI
Lamp Life
- 60000 hrs
Watts
- 6.6 w
- 10.5 w
- 14.4 w
- 21.9 w
- 30.0 w
- 38.6 w
Efficacy
- 107 lm/w
- 109 lm/w
- 112 lm/w
- 114 lm/w
Listings
- ETL
- UL
Warranty
- 5 yr
Voltage
- 120 V
- 120-277 V
- 277 V
Dimming Range
- 1%
