SGECS4SQFX

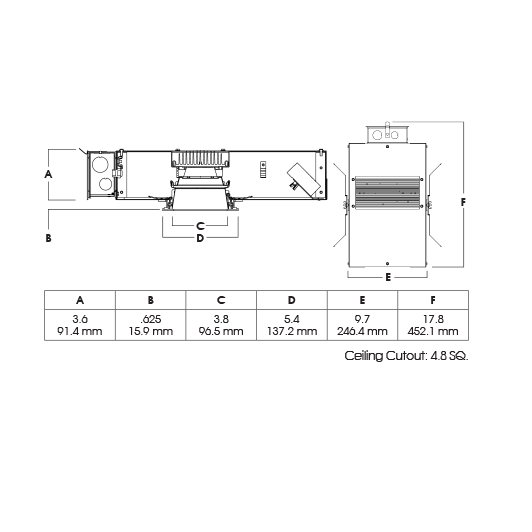

SGECS4SQ.DWNG.pngSGECS4SQFX
4" Fx Super Shallow 3.6" Deep Ic Rated - 4000Lm
High lumen, 3.6" deep 4" aperture recessed LED downlight. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Integral 5/8" (.625) collar, see PR option for thicker ceilings. BH27 Standard mounting bars included.
Resources
Families
- Infinium
Trim Type
- Flange
Lumens
- 1000 Lm
- 2000 Lm
- 3000 Lm
- 4000 Lm
Shape
- Square
Aperture
- 4 In.
Installation Type
- New Construction
Dimming Protocol
- 0-10 V
Ratings & Compliance
- Buy American Act (BAA)
- IC
- Made in America
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
- 90 CRI
Watts
- 6.6 w
- 14.1 w
- 21.9 w
- 30.3 w
Efficacy
- 105 lm/w
- 108 lm/w
- 112 lm/w
- 115 lm/w
Listings
- ETL
- UL
Warranty
- 5 yr
Voltage
- 120-277 V
Dimming Range
- 1%
- 10%
