16" Mid/High Bay
13800 Lm - Decorative Arms
PRAF16LX

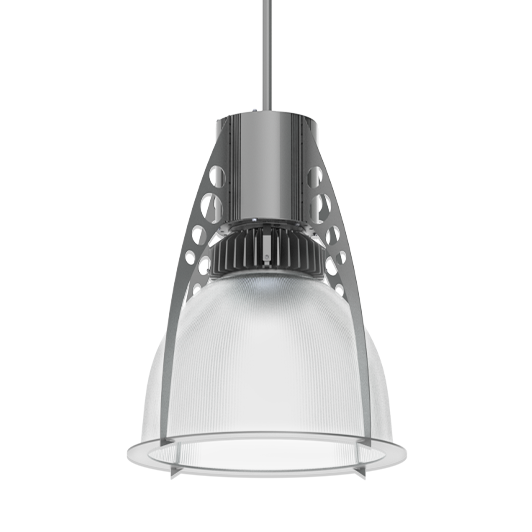

16" Arc Pendant evokes industrial age designs while using the latest LED technology for excellent general illumination. Prismatic refractor provides horizontal and vertical distribution. Laser cut decorative arm. Extruded Fixture Housing (EXT). Single-stage optical system for smooth light distribution. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impacts. Optional safety cable. Variety of mounting methods.
16" Arc Pendant evokes industrial age designs while using the latest LED technology for excellent general illumination. Prismatic refractor provides horizontal and vertical distribution. Laser cut decorative arm. Extruded Fixture Housing (EXT). Single-stage optical system for smooth light distribution. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impacts. Optional safety cable. Variety of mounting methods.
Resources
PRAF16LX, PRAF, PR, PRA,PRAF16,16LX
Families
- High Bay
- Mid Bay
Lumens
- 6500 Lm
- 10000 Lm
- 13000 Lm
- 14000 Lm
Diameter
- 16 In.
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Buy American Act (BAA)
- Made in America
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80 CRI
Color / Finish
- Bronze
- Gloss Black
- Matte Black
- Matte White
- Silver
Watts
- 56.2 w
- 81.1 w
- 103.9 w
- 111.9 w
Efficacy
- 99 lm/w
- 103 lm/w
- 106 lm/w
Listings
- ETL
- UL
Materials
- Acrylic
- Aluminum
- Die-Cast Aluminum
Warranty
- 5 yr
Voltage
- 120-277 V
- 347 V
