AS01SQFNC, AS01SQFIC, AS01SQFRT
AS01SQ - RT.png
AS01SQ - RT.DWNG.png
AS01SQ - NC.png
AS01SQ - NC.DWNG.png
AS01SQ - IC.png
AS01SQ - IC.DWNG.pngAS01SQFNC, AS01SQFIC, AS01SQFRT

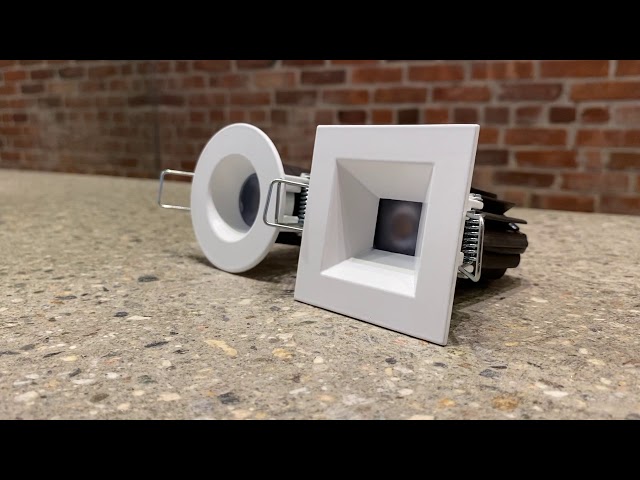

1" A Spec Square Downlight - 514Lm
Precision Die-formed 20 gauge galvanized steel housing and tethered driver enclosure for tool-less accessibility once installed. Driver enclosure features integral thermal protector. Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory. Multi-Bar mounting brackets. Expandable bar hangers with horizontal range of 14.2"-26". Vertical adjustment is 0.625". Ceiling materials must be rigid enough to support luminaire frame.
Resources
Families
- A Spec
Trim Type
- Downlight
- Flange
Lumens
- 400 Lm
- 700 Lm
Distribution
- Medium
- Narrow
- Very Narrow
Shape
- Square
Aperture
- 1 In.
Installation Type
- New Construction
- Retrofit & Remodel
Dimming Protocol
- 0-10 V
Ratings & Compliance
- Buy America
- Buy American Act (BAA)
- Chicago Plenum
- IC
- Made in America
- Non-IC
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Watts
- 6.3 w
- 9.7 w
Efficacy
- 47 lm/w
- 53 lm/w
Listings
- ETL
- UL
Materials
- Aluminum
- Steel
Trim Finish
- Black
- Matte White
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 5%
