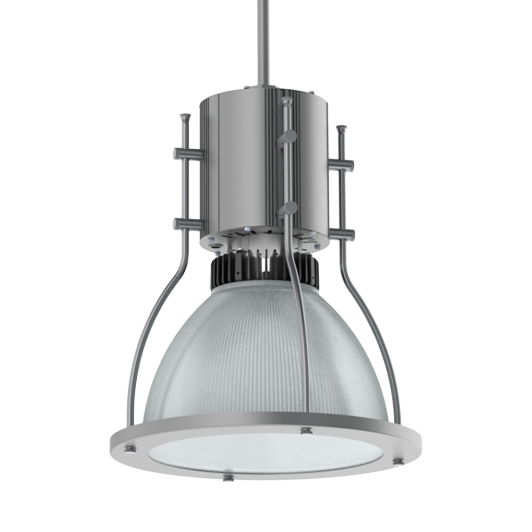

12" Low/Mid Bay
5500 Lm - Glass Refractor
GPX12GVÂ
Lumen Max GV Series cast refractive performance pendant for low and mid-bay applications. Solid cast glass refractor provides horizontal and vertical distribution. Decorative support arms and lower parts add visual appeal. Extruded Fixture Housing (EXT) features a clean and modern design. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.
Lumen Max GV Series cast refractive performance pendant for low and mid-bay applications. Solid cast glass refractor provides horizontal and vertical distribution. Decorative support arms and lower parts add visual appeal. Extruded Fixture Housing (EXT) features a clean and modern design. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.
Resources
GPX12GV, GPX, GP, GPX12Â
Families
- Low Bay
- Mid Bay
Lumens
- 1500 Lm
- 2700 Lm
- 3700 Lm
- 5500 Lm
Diameter
- 12 In.
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Buy American Act (BAA)
- Made in America
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Bronze
- Gloss Black
- Matte Black
- Matte White
- Silver
Watts
- 10 w
- 18 w
- 26 w
- 39 w
Listings
- ETL
- UL
Materials
- Acrylic
- Aluminum
- Die-Cast Aluminum
- Polycarbonate
Warranty
- 5 yr
Voltage
- 120-277 V
